Native / Desktop Apps
Developers wanting to integrate into desktop apps & CLIs can use our Rust SDK. There are two broad approaches to using the Mixnet (E2E or as a proxy), with different modules suited for each, each with their own specific usecase and limitations.

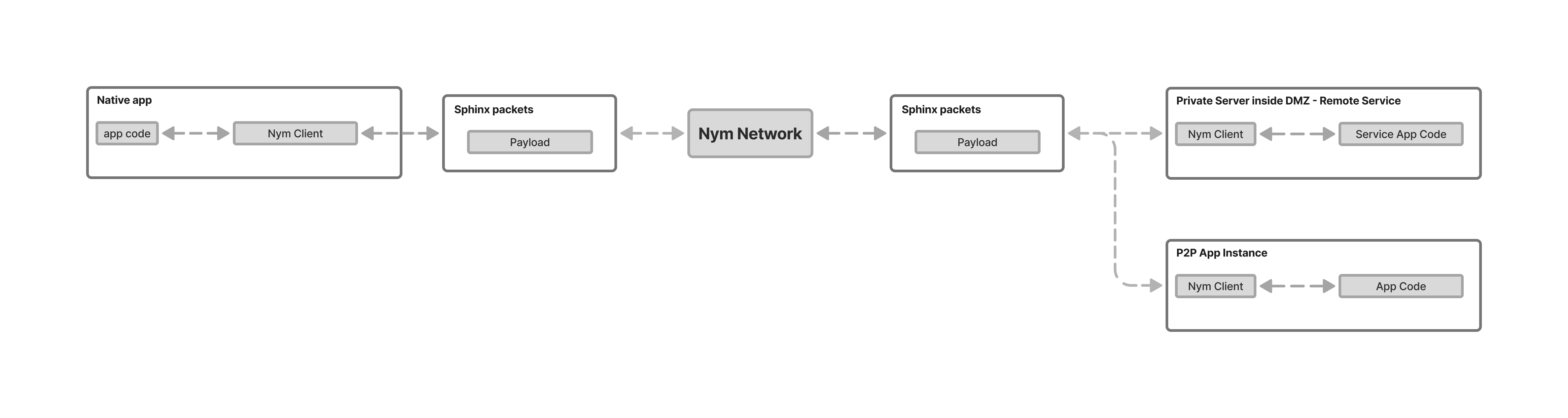

Option 1: Mixnet End-To-End
You might want to embed Nym Clients in both sides of your app, and have them send all of your app network traffic through the Mixnet: maybe two clients in a peer to peer setup, or a client and a server where it is possible for you as a developer to release both the client and server side code, and have some ability to make sure that it is being run.
There are several options available:
Mixnet & Client Pool Modules
The Mixnet module of the SDK exposes low level connection functionality and the Mixnet Client. The Client Pool is one answer to concurrency, and allows developers to run several Nym Clients at once which can be quickly used.
This approach might be useful if you want to build custom connection logic, but the TcpProxy Module will probably be sufficient for the majority of usecases where developers just want to send and receive traffic as streams.
TcpProxy Module
A pair of abstractions built for use in a client-server setup, which both expose a localhost TCP Socket which apps can read/write bytes to/from.
There is a new abstraction coming soon mirroring the interface and use of a TCP Socket, making it easier for developers to use the Mixnet, and also perform TLS through a Mixnet connection. Stay tuned.

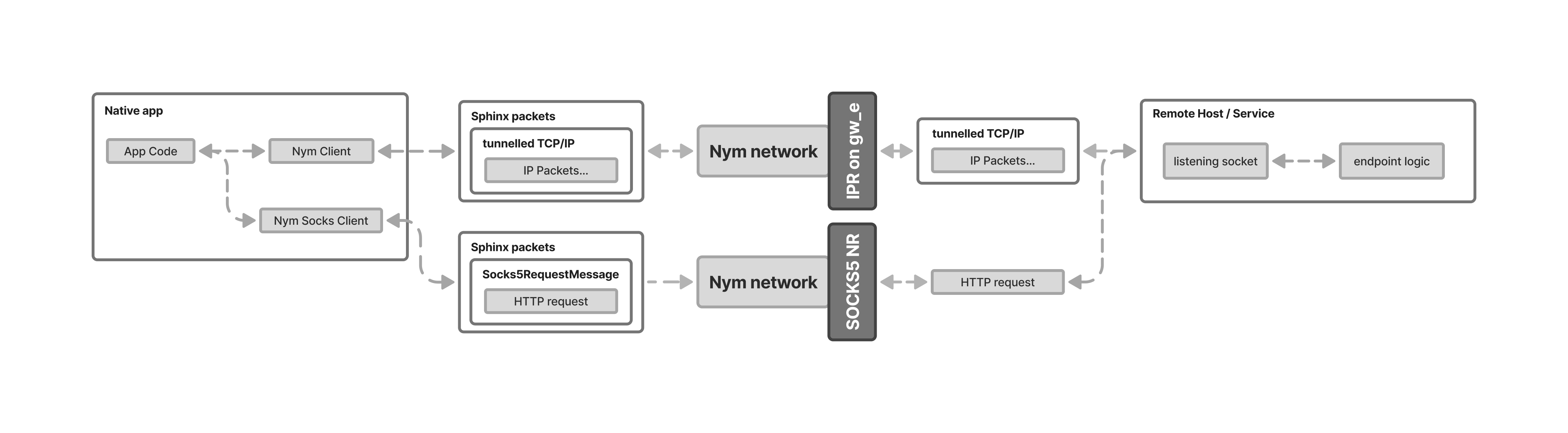

Option 2: Mixnet-As-Proxy
For developers who are only able to control the client-side code, and/or need to communicate with a 3rd party service, such as a public blockchain RPC or a remote host they do not control.
Security Considerations
Since traffic is only packaged as Sphinx until it gets to the Exit Gateway, where it is unwrapped into either HTTPS packets (by a Network Requester) or IP packets (by an IP Packet Router), the last hop between the Gateway and the remote host travels as normal internet traffic.
As such, this option has fewer protections than the E2E option against a global passive adversary, but still grants you timing obfuscation and sender-receiver unlinkability between your client software and whatever service it is interacting with.
SOCKS Client
Developers with apps that support SOCKS4,4a, or 5 can use the Socks Client exposed by the Mixnet module. This uses the Network Requester service of the chosen Exit Gateway to interact with the remote host via the chosen SOCKS proxy protocol. The Network Requester uses SURBs to anonymously reply to the original sender with whatever response it gets from the remote host.
There is a new abstraction coming soon that will allow the SDK to send IP packets, the beginning of a longer project to make a native Rust version of mixFetch. Stay tuned.
